DF1760
regulated power
supply |
| |
|
 |
Product
Information
|
|
|
Product Code:
|
|
|
Type:
|
DF1760 /2A |
|
Specs:
|
This product can
convert the net
voltage into
13.8V standard
DC power,
specially
designed for
minor household
transceiver,
car-carried
mobile equipment
and portable
equipment.
Input Voltage:
AC110V or 220V
10% load
regulation
Applies current
limit or short
circuit
protection for
DC output
5% voltage
regulation
Current limit
protector for AC
input
One hour
continuous
working time
|
|
Quality:
|
|
|
|
|
|
|
|
|
DF1764 regulated power supply
|
| |
|
|
|
Product
Information
|
|
| Product
Code: |
|
| Type:
|
DF1764
/15A |
| Specs:
|
This
product can convert the net voltage into
13.8V standard DC power, specially
designed for minor household
transceiver, car-carried mobile
equipment and portable equipment.
Input Voltage: AC110V or 220V
10% load regulation
Applies current limit or short circuit
protection for DC output
5% voltage regulation
Current limit protector for AC input
One hour continuous working time
|
|
Quality: |
|
|
|
|
|

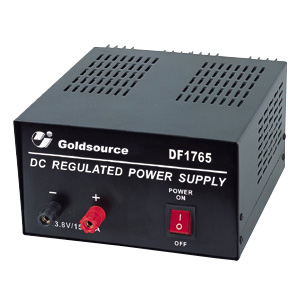

DF1765 regulated power supply
|
| |
|
|
|
Product
Information
|
|
| Product
Code: |
|
| Type:
|
DF1765
/20A |
| Specs:
|
This
product can convert the net voltage into
13.8V standard DC power, specially
designed for minor household
transceiver, car-carried mobile
equipment and portable equipment.
Input Voltage: AC110V or 220V
10% load regulation
Applies current limit or short circuit
protection for DC output
5% voltage regulation
Current limit protector for AC input
One hour continuous working time
|
|
Quality: |
|
|
|
|
|
DF1767 regulated power supply
|
| |
|
|
|
Product
Information
|
|
| Product
Code: |
|
| Type:
|
DF1767
/30A |
| Specs:
|
This
product can convert the net voltage into
13.8V standard DC power, specially
designed for minor household
transceiver, car-carried mobile
equipment and portable equipment.
Input Voltage: AC110V or 220V
10% load regulation
Applies current limit or short circuit
protection for DC output
5% voltage regulation
Current limit protector for AC input
One hour continuous working time
|
|
Quality: |
|
| Others:
|
| Type |
Output Current |
Sourse Regulation |
Ripple Voltage |
External Package Size |
N.W./G.W. |
Remark |
Qty per.Carton |
| DF1760 |
2A |
3A |
100mV |
44.5*25.5*19.5cm |
14/16Kg |
Mode No referred to "DF＆＆＆＆"
if single input 220VAC is needed
and referred to "DF＆＆＆＆B" if
single input 110VAC is need |
8PCS/CTN |
| DF1761 |
3A |
5A |
100mV |
44.5*25.5*19.5cm |
16/18Kg |
|
8PCS/CTN |
| DF1762 |
5A |
7A |
100mV |
33.0*32.5*27.5cm |
17/18.5Kg |
|
4PCS/CTN |
| DF1763 |
10A |
12A |
120mV |
33.0*32.5*27.5cm |
19/20.5Kg |
|
4PCS/CTN |
| DF1764 |
15A |
17A |
120mV |
44.5*33.5*16.0cm |
11/12Kg |
|
2PCS/CTN |
| DF1765 |
20A |
22A |
150mV |
44.5*33.5*16.0cm |
13/14Kg |
|
2PCS/CTN |
| DF1766 |
25A |
27A |
150mV |
41.5*29.0*22.5cm |
12/13Kg |
|
1PCS/CTN |
| DF1767 |
30A |
32A |
150mV |
41.5*29.0*22.5cm |
16/17Kg |
|
1PCS/CTN |
| DF1768 |
40A |
42A |
200mV |
45.0*38.5*24.5cm |
17.5/18.5Kg |
|
1PCS/CTN |
| DF1769 |
50A |
53A |
200mV |
45.0*38.5*24.5cm |
19/20Kg |
|
1PCS/CTN |
|
|
|
|
|
