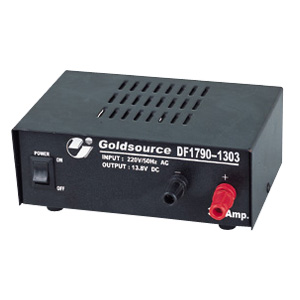

DF1790-1303
switching power
supply |
| |
|
 |
Product
Information
|
|
|
Product Code:
|
|
|
Type:
|
DF1790-1303
|
|
Specs:
|
Contin
Current: 3A
Surge
Current: 5A
Load
Regulation:
0.5%
Ripple
Voltage: 100mV
External Package
Size:
33.0*29.5*28.0cm
N.W./G.W.:
15/17Kg
Qty Per.Carton: 16PCS/CTN
|
|
Quality:
|
|
|
Description:
|
This product
applies high
frequency switch
convertion
technology to
convert the
power net
voltage into
13.8V standard
DC power which
is specially
designed for
minor household
transceiver, can
movable
equipment and
portable
units.Features a
small dimension,
high efficiency
and low ripple
voltage, etc.
Input Voltage:
AC110V ＼15% or
220V ＼15% Output
Voltage: 13.8V
＼3% 0.5% power
adjustment rate
Applies overload
short circuit
protective
circuit. |
|
|
|
|
|
|
|
DF1790-1310 switching power supply
|
| |
|
|
|
Product
Information
|
|
| Product
Code: |
|
| Type:
|
DF1790-1310
|
| Specs:
|
Contin
Current: 10A
Surge Current: 12A
Load Regulation: 0.5%
Ripple Voltage: 150mV
External Package Size:
48.5*45.0*20.0cm
N.W./G.W.: 16/18Kg
Qty Per.Carton: 8PCS/CTN |
|
Quality: |
|
|
Description: |
This
product applies high frequency switch
convertion technology to convert the
power net voltage into 13.8V standard DC
power which is specially designed for
minor household transceiver, can movable
equipment and portable units.Features a
small dimension, high efficiency and low
ripple voltage, etc. Input Voltage:
AC110V ＼15% or 220V ＼15% Output Voltage:
13.8V ＼3% 0.5% power adjustment rate
Applies overload short circuit
protective circuit. |
|
|
|
|

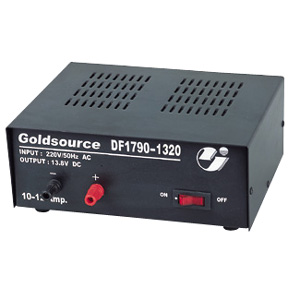

DF1790-1320 switching power supply
|
| |
|
|
|
Product
Information
|
|
| Product
Code: |
|
| Type:
|
DF1790-1320
|
| Specs:
|
Contin
Current: 20A
Surge Current: 22A
Load Regulation: 1.0%
Ripple Voltage: 200mV
External Package Size:
57.35*53.5*24.0cm
N.W./G.W.: 20/22Kg
Qty Per.Carton: 8PCS/CTN |
|
Quality: |
|
|
Description: |
This
product applies high frequency switch
convertion technology to convert the
power net voltage into 13.8V standard DC
power which is specially designed for
minor household transceiver, can movable
equipment and portable units.Features a
small dimension, high efficiency and low
ripple voltage, etc. Input Voltage:
AC110V ＼15% or 220V ＼15% Output Voltage:
13.8V ＼3% 0.5% power adjustment rate
Applies overload short circuit
protective circuit. |
|
Others:
|
|
DF1790-1306 |
6A-8A |
8PCS/CTN |
43X39.5X22CM |
14/12Kgs |
|
|
|
|
|
