DF1722
regulated power
supply |
| |
|
 |
Product
Information
|
|
|
Product Code:
|
|
|
Type:
|
DF1722 /6A |
|
Specs:
|
This product can
convert the net
voltage into
13.8V standard
DC power,
specially
designed for
minor household
transceiver,
car-carried
mobile equipment
and portable
equipment.
Input Voltage:
AC110V or 220V
1.5% load
regulation
Current limit
protector for AC
input
One hour
continuous
working time
|
|
Quality:
|
|
|
|
|
|
|
|
|

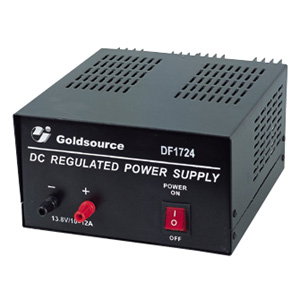

DF1724 regulated power supply
|
| |
|
|
|
Product
Information
|
|
| Product
Code: |
|
| Type:
|
DF1724
/10A |
| Specs:
|
This
product can convert the net voltage into
13.8V standard DC power, specially
designed for minor household
transceiver, car-carried mobile
equipment and portable equipment.
Input Voltage: AC110V or 220V
1.5% load regulation
Current limit protector for AC input
One hour continuous working time |
|
Quality: |
|
|
|
|
|

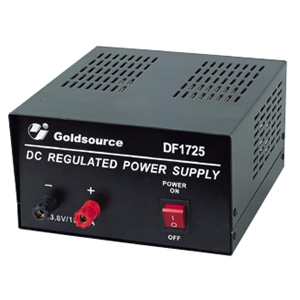

DF1725 regulated power supply
|
| |
|
|
|
Product
Information
|
|
| Product
Code: |
|
| Type:
|
DF1725
/15A |
| Specs:
|
This
product can convert the net voltage into
13.8V standard DC power, specially
designed for minor household
transceiver, car-carried mobile
equipment and portable equipment.
Input Voltage: AC110V or 220V
1.5% load regulation
Current limit protector for AC input
One hour continuous working time |
|
Quality: |
|
|
|
|
|
DF1727 regulated power supply
|
| |
|
|
|
Product
Information
|
|
| Product
Code: |
|
| Type:
|
DF1727
/25A |
| Specs:
|
This
product can convert the net voltage into
13.8V standard DC power, specially
designed for minor household
transceiver, car-carried mobile
equipment and portable equipment.
Input Voltage: AC110V or 220V
1.5% load regulation
Current limit protector for AC input
One hour continuous working time |
|
Quality: |
|
| Others:
|
| Type |
Output Current |
Sourse Regulation |
Ripple Voltage |
External Package Size |
N.W./G.W. |
Remark |
Qty Per.Carton |
| DF1721 |
3A |
5A |
15mV |
44.5*25.5*19.5cm |
17.5*19Kg |
Mode No referred to
"DF＆＆＆＆A" |
8PCS/CTN |
| DF1722 |
5A |
7A |
25mV |
32.5*30.5*27.5cm |
12.5/14Kg |
if single input 220VAC is
needed and referred to "DF＆＆＆＆B"
|
4PCS/CTN |
| DF1723 |
8A |
10A |
35mV |
32.5*30.5*27.5cm |
19/20.5Kg |
if single input 110VAC is
need |
4PCS/CTN |
| DF1724 |
10A |
12A |
40mV |
44.5*32.0*16.0cm |
11/12Kg |
|
2PCS/CTN |
| DF1725 |
15A |
17A |
60mV |
44.5*33.5*16.0cm |
16/17Kg |
|
2PCS/CTN |
| DF1729 |
20A |
22A |
60mV |
44.5*37.5*16.0cm |
17.5/19Kg |
|
2PCS/CTN |
| DF1727 |
25A |
27A |
60mV |
41.5*29.0*22.5cm |
10/11Kg |
|
1PCS/CTN |
| DF1726 |
30A |
32A |
60mV |
41.5*29.0*22.5cm |
17/18Kg |
|
1PCS/CTN |
| DF1722C |
6A |
8A |
25mV |
32.5*30.5*27.5cm |
12.5/14Kg |
Input Voltage DC24V |
4PCS/CTN |
| DF1724C |
10A |
12A |
40mV |
44.5*32.0*16.0cm |
11/12Kg |
|
2PCS/CTN |
| DF1729C |
20A |
25A |
60mV |
44.5*37.5*16.0cm |
17.5/19Kg |
|
2PCS/CTN |
| DF1726C |
30A |
35A |
60mV |
40.0*28.5*23.0cm |
17/18Kg |
|
2PCS/CTN |
|
|
|
|
|
